RAVENOL Turbo Oil T32
Өндүрүүчү тарабынан жактырылган:
Siemens TLV 9013 04, Siemens TLV 9013 05
Талаптарга шайкештик:
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S. Steel 120, Westinghouse Turbine Oil Spec.
SAE: 32W
- Жеткиликтүү таңгактоо
- Продукттун параметрлери
Көлөм:
20 լ
Артикул:
1331114-020
Көлөм:
60 լ
Артикул:
1331114-060
Көлөм:
208 լ
Артикул:
1331114-208
Көлөм:
1 000 լ
Артикул:
1331114-700
RAVENOL Turbo Oil T32
is a high quality lubricating oil for gas and steam turbines as well as for turbo compressors with and without gears, which meets the requirements of DIN 51515-2.
RAVENOL Turbo Oil T32
is based on high quality base oils with additives to improve the corrosion protection and resistance to aging.
RAVENOL Turbo Oil T32
is an all-purpose oil for turbines from specially selected base oils with the addition of special refined additives.
Application Note
RAVENOL Turbo Oil T3
is used in stationary gas turbines, steam turbines and also in electrical or in driven by steam machines, such as generators, compressors, pumps and gearboxes.
RAVENOL Turbo Oil T3
is also for use in lubrication of hydraulic systems, compressors, gear transmissions and bearings.
| Параметр | Өлчөм бирдиги | Маани | Сыноо | |
|---|---|---|---|---|
| Меденин тилке тести | pass | DIN EN ISO 2160 |
pass
DIN EN ISO 2160
|
|
| Илешкектүүлүк | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Түрү | Mineral |
Mineral
|
||
| Өндүрүүчү тарабынан бекитилген | Siemens TLV 9013 04, Siemens TLV 9013 05 |
Siemens TLV 9013 04, Siemens TLV 9013 05
|
||
| Талаптарга жооп берет | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S. Steel 120, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S. Steel 120, Westinghouse Turbine Oil Spec.
|
||
| Спецификацияларга туура келет | DIN 51515-1 L-TD, DIN 51515-2 L-TG |
DIN 51515-1 L-TD, DIN 51515-2 L-TG
|
||
| Тығыздык 20°Cде | g/cm³ | 849 | EN ISO 12185 |
849
g/cm³
EN ISO 12185
|
| Rang | L1.5 | DIN ISO 2049 |
L1.5
DIN ISO 2049
|
|
| Илешкектүүлүк 100°Cде | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Илешкектүүлүк 40°Cде | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Илешкектүүлүк индекси VI | 122 | DIN ISO 2909 |
122
DIN ISO 2909
|
|
| Муздоо температурасы | °C | — -12 | DIN ISO 3016 |
— -12
°C
DIN ISO 3016
|
| Жануу температурасы | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| Суунун курамы | % | — 0.01 | DIN 51777-1 |
— 0.01
%
DIN 51777-1
|
| Толеранттуулуктар | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 120, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 120, Westinghouse Turbine Oil Spec.
|

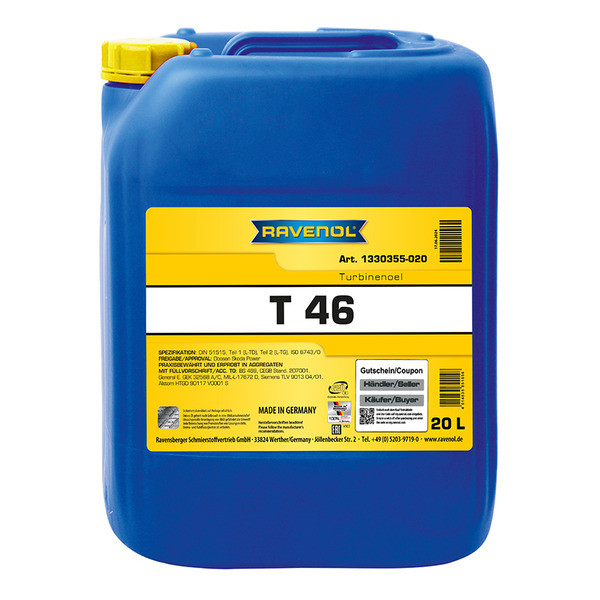

RAVENOL Turbinenöl T 46 is produced for the lubrication of gas and steam turbines as well as turbo compressors with and without transmission according to the specifications of DIN 51 515-2.
Талаптарга шайкештик:
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, U.S. Steel 20, Westinghouse Turbine Oil Spec.
SAE: 46
- Жеткиликтүү таңгактоо
- Продукттун параметрлери
Көлөм:
20 լ
Артикул:
1330355-020
Көлөм:
208 լ
Артикул:
1330355-208
Көлөм:
1 000 լ
Артикул:
1330355-700
RAVENOL Turbinenöl T 46 is produced for the lubrication of gas and steam turbines as well as turbo compressors with and without transmission according to the specifications of DIN 51 515-2.
RAVENOL Turbinenöl T 46 is based on high quality mineral base oils with agents to increase the corrosion protection and aging resistance.
RAVENOL Turbinenöl T 46 is a universal mineral oil for turbines of especially chosen refined base oils with a natural high viscosity index. So-called “metal deactivators” are added to the turbine oil in addition to the normal additives in order to guarantee the excellent characteristics.
Application Note
RAVENOL Turbinenöl T 46 is used in fixed gas and steam turbines as well as electrical machines or machines driven by steam turbines like generators, compressors, pumps and transmissions.
RAVENOL Turbinenöl T 46 can also be used for the lubrication of hydraulic systems, compressors, gear transfers and bearings in case of problems of the contamination with water because a high protection against rust and oxidation is requested.
Characteristics
- an excellent thermic and oxidative stability
- an excellent viscosity temperature behaviour
- a high and stable viscosity index
- a very good oxidation stability also at very high temperatures
- a good protection against corrosion of Ferro and non Ferro metals
- an excellent water separation behaviour
- a very good air separation behaviour which excludes foam formation as far as possible
- a low pourpoint
- a good corrosion behaviour
- an excellent water separation behaviour / demulsifying behaviour
| Параметр | Өлчөм бирдиги | Маани | Сыноо | |
|---|---|---|---|---|
| Илешкектүүлүк | 46 |
46
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Түрү | Mineral |
Mineral
|
||
| Талаптарга жооп берет | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, U.S. Steel 20, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, U.S. Steel 20, Westinghouse Turbine Oil Spec.
|
||
| Спецификацияларга туура келет | DIN 51515-1 L-TD, DIN 51515-2 L-TG, ISO 6743-0 |
DIN 51515-1 L-TD, DIN 51515-2 L-TG, ISO 6743-0
|
||
| Туура келет | Doosan Skoda Power |
Doosan Skoda Power
|
||
| Тығыздык 20°Cде | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Rang | Yellow | տեսողական |
Yellow
տեսողական
|
|
| Илешкектүүлүк 100°Cде | mm²/s | 7.8 | DIN 51562-1 |
7.8
mm²/s
DIN 51562-1
|
| Илешкектүүлүк 40°Cде | mm²/s | 46.1 | DIN 51562-1 |
46.1
mm²/s
DIN 51562-1
|
| Илешкектүүлүк индекси VI | 137 | DIN ISO 2909 |
137
DIN ISO 2909
|
|
| Муздоо температурасы | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Толеранттуулуктар | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO 6743-0, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, U.S. Steel 20, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO 6743-0, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, U.S. Steel 20, Westinghouse Turbine Oil Spec.
|

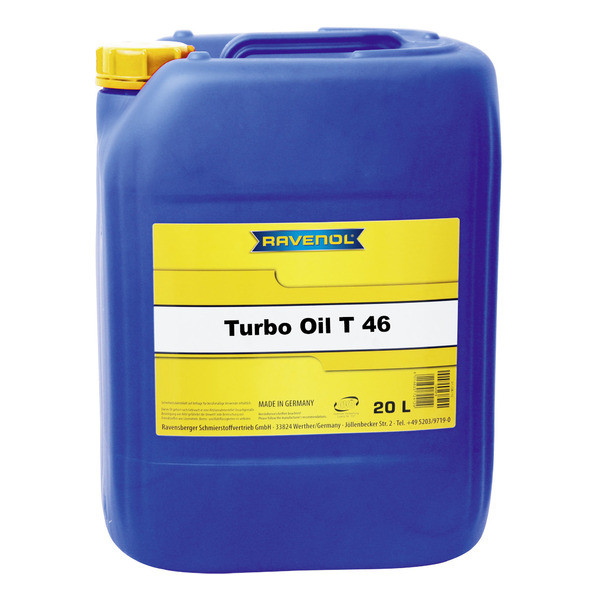

RAVENOL Turbo Oil T46
Өндүрүүчү тарабынан жактырылган:
Siemens TLV 9013 04, Siemens TLV 9013 05
Талаптарга шайкештик:
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, U.S. Steel 20, Westinghouse Turbine Oil Spec.
SAE: 46
- Жеткиликтүү таңгактоо
- Продукттун параметрлери
Көлөм:
20 լ
Артикул:
1331115-020
Көлөм:
60 լ
Артикул:
1331115-060
Көлөм:
1 000 լ
Артикул:
1331115-700
RAVENOL Turbo Oil T46
is a high quality lubricating oil for gas and steam turbines as well as for turbo compressors with and without gears, which meets the requirements of DIN 51515-2.
RAVENOL Turbo Oil T46
is based on high quality base oils with additives to improve the corrosion protection and resistance to aging.
RAVENOL Turbo Oil T46
is an all-purpose oil for turbines from specially selected base oils with the addition of special refined additives.
Application Note
RAVENOL Turbo Oil T4
is used in stationary gas turbines, steam turbines and also in electrical or in driven by steam machines, such as generators, compressors, pumps and gearboxes.
RAVENOL Turbo Oil T4
is also for use in lubrication of hydraulic systems, compressors, gear transmissions and bearings.
| Параметр | Өлчөм бирдиги | Маани | Сыноо | |
|---|---|---|---|---|
| Меденин тилке тести | pass | DIN EN ISO 2160 |
pass
DIN EN ISO 2160
|
|
| Илешкектүүлүк | 46 |
46
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Түрү | Mineral |
Mineral
|
||
| Өндүрүүчү тарабынан бекитилген | Siemens TLV 9013 04, Siemens TLV 9013 05 |
Siemens TLV 9013 04, Siemens TLV 9013 05
|
||
| Талаптарга жооп берет | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, U.S. Steel 20, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, U.S. Steel 20, Westinghouse Turbine Oil Spec.
|
||
| Спецификацияларга туура келет | DIN 51515-1 L-TD, DIN 51515-2 L-TG |
DIN 51515-1 L-TD, DIN 51515-2 L-TG
|
||
| Тығыздык 20°Cде | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Rang | L1.0 | DIN ISO 2049 |
L1.0
DIN ISO 2049
|
|
| Илешкектүүлүк 40°Cде | mm²/s | 46.1 | DIN 51562-1 |
46.1
mm²/s
DIN 51562-1
|
| Муздоо температурасы | °C | — -12 | DIN ISO 3016 |
— -12
°C
DIN ISO 3016
|
| Жануу температурасы | °C | 274 | DIN EN ISO 2592 |
274
°C
DIN EN ISO 2592
|
| Суунун курамы | % | — 0.01 | DIN 51777-1 |
— 0.01
%
DIN 51777-1
|
| Толеранттуулуктар | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 20, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 20, Westinghouse Turbine Oil Spec.
|
RAVENOL Turbinenöl T 32 is produced for the lubrication of gas and steam turbines as well as turbo compressors with and without transmission according to the specifications of DIN 51 515-2.
Талаптарга шайкештик:
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
SAE: 32W
- Жеткиликтүү таңгактоо
- Продукттун параметрлери
Көлөм:
5 լ
Артикул:
1330354-005
Көлөм:
20 լ
Артикул:
1330354-020
Көлөм:
208 լ
Артикул:
1330354-208
Көлөм:
1 000 լ
Артикул:
1330354-700
RAVENOL Turbinenöl T 32 is produced for the lubrication of gas and steam turbines as well as turbo compressors with and without transmission according to the specifications of DIN 51 515-2.
RAVENOL Turbinenöl T 32 is based on high quality mineral base oils with agents to increase the corrosion protection and aging resistance.
RAVENOL Turbinenöl T 32 is a universal mineral oil for turbines of especially chosen refined base oils with a natural high viscosity index. So-called “metal deactivators” are added to the turbine oil in addition to the normal additives in order to guarantee excellent characteristics.
Application Note
RAVENOL Turbinenöl T 32 is used in fixed gas and steam turbines as well as in electrical machines or machines driven by steam turbines like generators, compressors, pumps and transmissions.
RAVENOL Turbinenöl T 32 can also be used for the lubrication of hydraulic systems, compressors, gear transfers and bearings in case of problems of the contamination with water because a high protection against rust and oxidation is requested.
Characteristics
- an excellent thermic and oxidative stability
- an excellent viscosity temperature behaviour
- a high and stable viscosity index
- a very good oxidation stability also at very high temperatures
- a good protection against corrosion of Ferro and non Ferro metals
- an excellent water separation behaviour
- a very good air separation behaviour which excludes foam formation as far as possible
- a low pourpoint
- a good corrosion behaviour
- an excellent water separation behaviour / demulsifying behaviour
| Параметр | Өлчөм бирдиги | Маани | Сыноо | |
|---|---|---|---|---|
| Илешкектүүлүк | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Түрү | Mineral |
Mineral
|
||
| Талаптарга жооп берет | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
|
||
| Спецификацияларга туура келет | DIN 51515-1 L-TD, DIN 51515-2 L-TG |
DIN 51515-1 L-TD, DIN 51515-2 L-TG
|
||
| Туура келет | Doosan Skoda Power |
Doosan Skoda Power
|
||
| Тығыздык 20°Cде | g/cm³ | 849 | EN ISO 12185 |
849
g/cm³
EN ISO 12185
|
| Rang | Yellow | տեսողական |
Yellow
տեսողական
|
|
| Илешкектүүлүк 100°Cде | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Илешкектүүлүк 40°Cде | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Илешкектүүлүк индекси VI | 122 | DIN ISO 2909 |
122
DIN ISO 2909
|
|
| Муздоо температурасы | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Толеранттуулуктар | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
|
